Tapiola Parish Model Railway Club


Kauniainen, Layout design

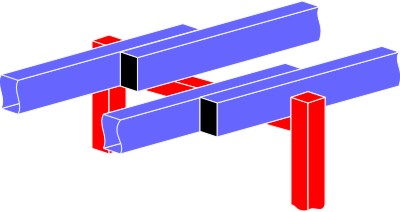

The principle of steel frame: red = Bauhaus stand, sininen= 20x40x2mm tubular steel (frame tubes)

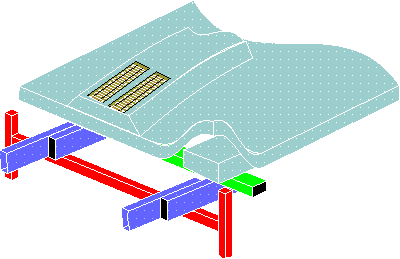

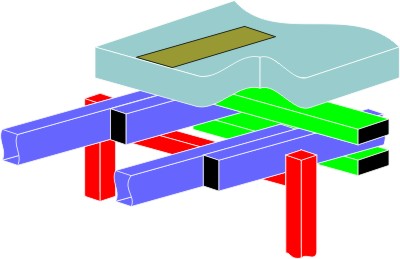

Of the two green tubes the tiopmost is permanently attached to module and the lower one is connected to the top one with long screw, thus clamping the blue steel frame tubes between the green ones.

Version Sep 10th, 2003

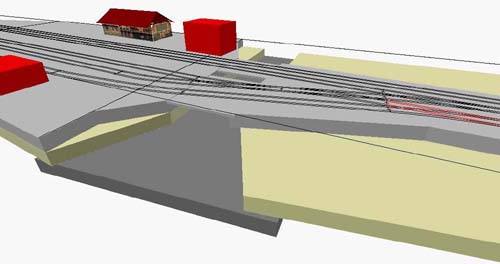

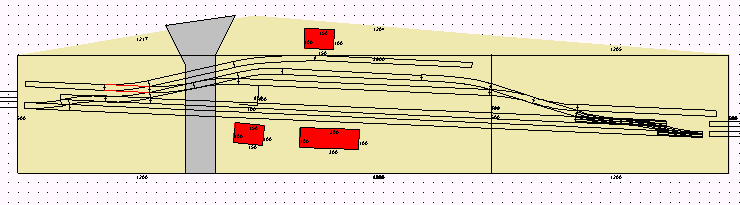

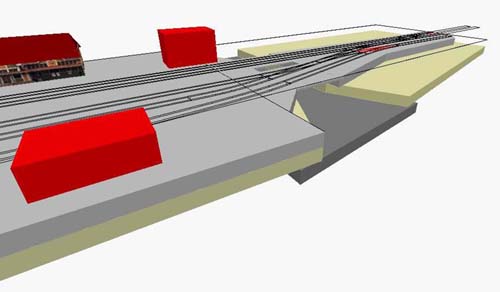

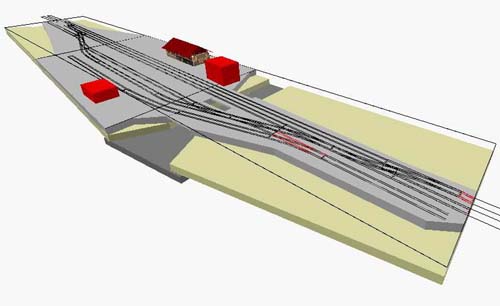

Planning of Kauniainen with Raily software




knj_T3.arf is the latest version! Download the demo Raily programme with the top link and start rotating the layout mid-air!
